Saturday, February 29, 2020

Week 2 Stair Concept Model


Stair - Tunnel to Ground

Sketchbook sketches

1st iteration

2nd iteration with model as reference
Front view

Left view

Isometric view

The client (the_kyza) liked his cars, which is why I worked with a tunnel idea since tunnels are like a pathway for cars. The light rings are inspired from racing games, which use rings to speed the cars up. So I thought I could incorporate that into the idea to give the user the feeling of racing or being in a fast sleek car. The glass could be changed in the future to a more appropriate material, but for now it gave transparency which I liked.

Week 2 Eight sections

Stair 1.
Tunnel to Ground
Sketchbook sections

SketchUp model

Stair 2.
Ground to Heart
Sketchbook sections

SketchUp Model

Stair 3.
Heart to Ground
Sketchbook sections

SketchUp Model

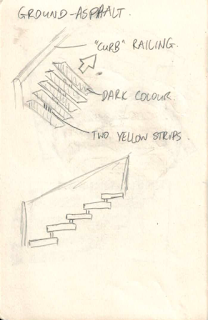

Stair 4.
Ground to Asphalt
Sketchbook sections

SketchUp Model

Week 1 Section Sketches

Clients
1. the_kyza's Orange car
2. Mountain & Moon's Carrie Earrings


1.
Upper - Aerodynamic
Lower - Heartshaped
2.
Upper - Aerodynamic
Lower - Gemstone
3.
Upper - Aerodynamic
Lower - Hanging
4.
Upper - Slip
Lower - Heartshaped
5.
Upper - Slip
Lower - Hanging
6.
Upper - Slip
Lower - Gemstones
7.
Upper - Asphalt
Lower - Heartshaped
8.
Upper - Asphalt
Lower - Hanging
9.
Upper - Asphalt
Lower - Gemstones
10.
Upper - Heartshaped
Lower - Aerodynamic
11.
Upper - Gemstone
Lower - Aerodynamic
12.
Upper - Hanging
Lower - Aerodynamic
13.
Upper - Heartshaped
Lower - Slip
14.
Upper - Hanging
Lower - Slip

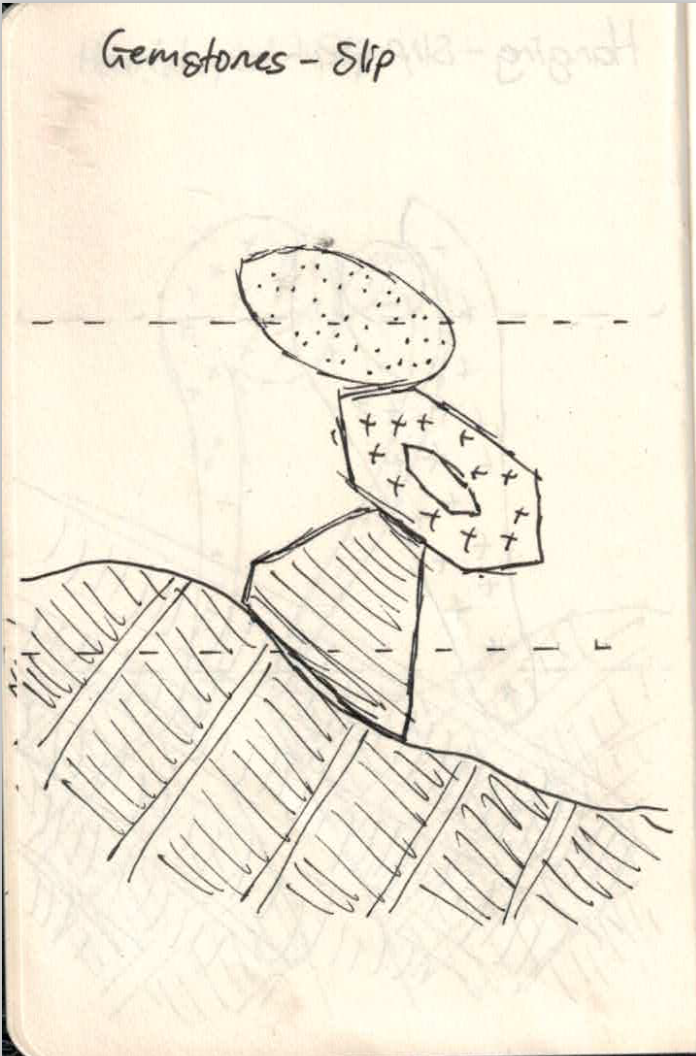

15.
Upper - Gemstones
Lower - Slip
16.
Upper - Heartshaped
Lower - Asphalt
17.
Upper - Hanging
Lower - Asphalt
18.
Upper - Gemstones
Lower - Asphalt

1st 3D sketch of No.16 cross-section (Heartshaped - Asphalt).

2nd 3D sketch of same cross-section. The bottom curved wall is made from structural glass. Bottom flooring made out of black high traction composite. Top inner walls made from plaster board painted pinkish-yellow with the exterior painted red. Some sections of the top floor are also glass for transparency.

Sunday, February 23, 2020

Week 1 Independent Study

Image 1

Top right view of the section. The top is in the shape of a heart and incorporates curves all around. The stairs act as the bottom section of the heart.

Image 2

Bottom left view. From the bottom you can see the tunnel shaped glass for the car manufacturer. The rings on the bottom stairs are inspired by racing car games, where rings would boost your car.

Sketch Heartshaped - Asphalt

Sunday, February 16, 2020

Week 1 Pre-work

Year 10 work. Converting a warehouse into a living space for two people.

The design uses a double helix as an inspiration. The two bedrooms on the top are in separate corners and are connected by the curved walls which lead to the stairs and make up part of the bathroom. The use of glass also lets the occupants see from the inside out from the landing above the stairs and also lets them look straight down from the second floor to the first. Although the design has a rigid box exterior, the interior has become more circular which creates a smoother atmosphere for the occupants.


Photograph of a building in Japan

This building is appealing to both the engineer's and architect's eyes. It is not a conventional rectangular high rise building that most buildings have been accustomed to. Instead, it uses plenty of horizontal and vertical elements that define the building. The protruding columns on the outside give the building a notion of strength and stability, while the horizontal elements connect the building together. The architect has left voids within the building which brings transparency to the building.



Photograph of a Japanese garden

This was taken within a Japanese park. It captures both man-made and nature's aesthetics. To the left, the man-made temple sits on the edge of a lake. It has plenty of open spaces which allow for people to look through and interact with its environment. The colors are similar to each other which makes it so that nothing in particular sticks out from the image. The lake is also perfectly still, which makes the reflection of the building and trees all the more beautiful.
