Week 11 Peer mark

Peer marked by Patrick Sindler



Peer marked by Ryan Li

Peer marked by Vanessa Nguyen

Week 11 Animation

Week 10 Real time images + Comments + Links

Theory
Two streams of movement can merge together to create a flexible and multipurpose bridge which can be designed to overlook each other and create a cozy, intertwining environment between them.

Final comments
The bridge has two layers stacked on top of each other with both levels overlooking their surroundings through the large windows and voids on the lower level. The upper level rotates to create a flexible environment suitable for any purpose. The combination of lights, voids and interior décor bring a cosy atmosphere to harmonise the interior design of the bridge. Finally, the stairs bring further stream of connection between the ground and other two layers.

SketchUp
https://3dwarehouse.sketchup.com/model/080dea57-d470-4def-8c9c-2c6d47e3715c/Isaiah-Wibowo-ARCH1101-EXP2-2020

Lumion
https://www.dropbox.com/s/j5hct83h6g2g32x/3D%20cross%20lumion%20project%205.2.ls10s?dl=0

Week 10 6 x 6 Textures

6 x 6 Textures

Linear

Rotational

Scalar

Merge

Flow

Weave

Week 9 Axonometric and Two point perspective

Axonometric

via Imgflip

Two point perspective

via Imgflip

Week 8 Plan inspiration to bridge

Original plan - Mies van der Roch

Extracted plan

Extracted sketch

Modified sketch

I didn't actually make a section of the modified shape. Instead, I imagined that the modified shape was a top down view of multiple layers of a structure, which were all interconnected to each other. From there I just created three different layers in SketchUp and played around with the layers to make them flow between each other.

Lumion models of developed sketch

Week 7 Perspective drawings of cross with mass

Original Cross view 1

Cross with added mass view 1

Original Cross view 2

Cross with added mass view 2

Original Cross view 3

Cross with added mass view 3

Sketchup perspectives






Lumion renders

Week 6 Bridge Precedent + Theory to movement

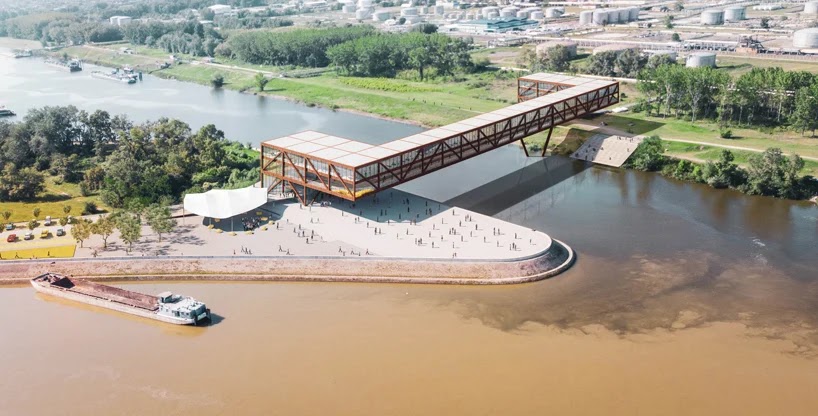

Multifunctional Bridge in Novi Sad

Location - Novi Sad, Serbia

Design: Studio ARCVS

Team members: Branislav Redžić, Dragan Ivanović, Zoran Milovanović, Dušan Milošev, Milica Tasić, Nevenka Redžić

Structural design: Sreto Kuzmanović

Consultant: Vanja Vukadinović Durić

Photography: Mlađen Jovanović, Igor Srdić

Bridge Type - Multifunctional Pedestrian Bridge

Area - 6,000m2

Keywords:

Multipurpose

Overlooking

Flexible

Merges

Cozy

Theory
Two streams of movement can merge together to create a flexible and multipurpose bridge which can be designed to overlook each other and create a cozy, intertwining environment between them.

Source: Gomez, C., 2020. Arcvs Proposes A Bridge Housing Hotel And Office Spaces Floating Over The Danube In Serbia. [online] designboom | architecture & design magazine. Available at: <https://www.designboom.com/architecture/arcvs-bridge-novi-sad-serbia-elbow-shadow-07-12-2019/> [Accessed 29 March 2020].

Week 5 Circulation cross

Week 4 3 Perspective + 3 Sections

Perspective 1 - Front of the building


Perspective 2 - From top right


Perspective 3 - From bottom left

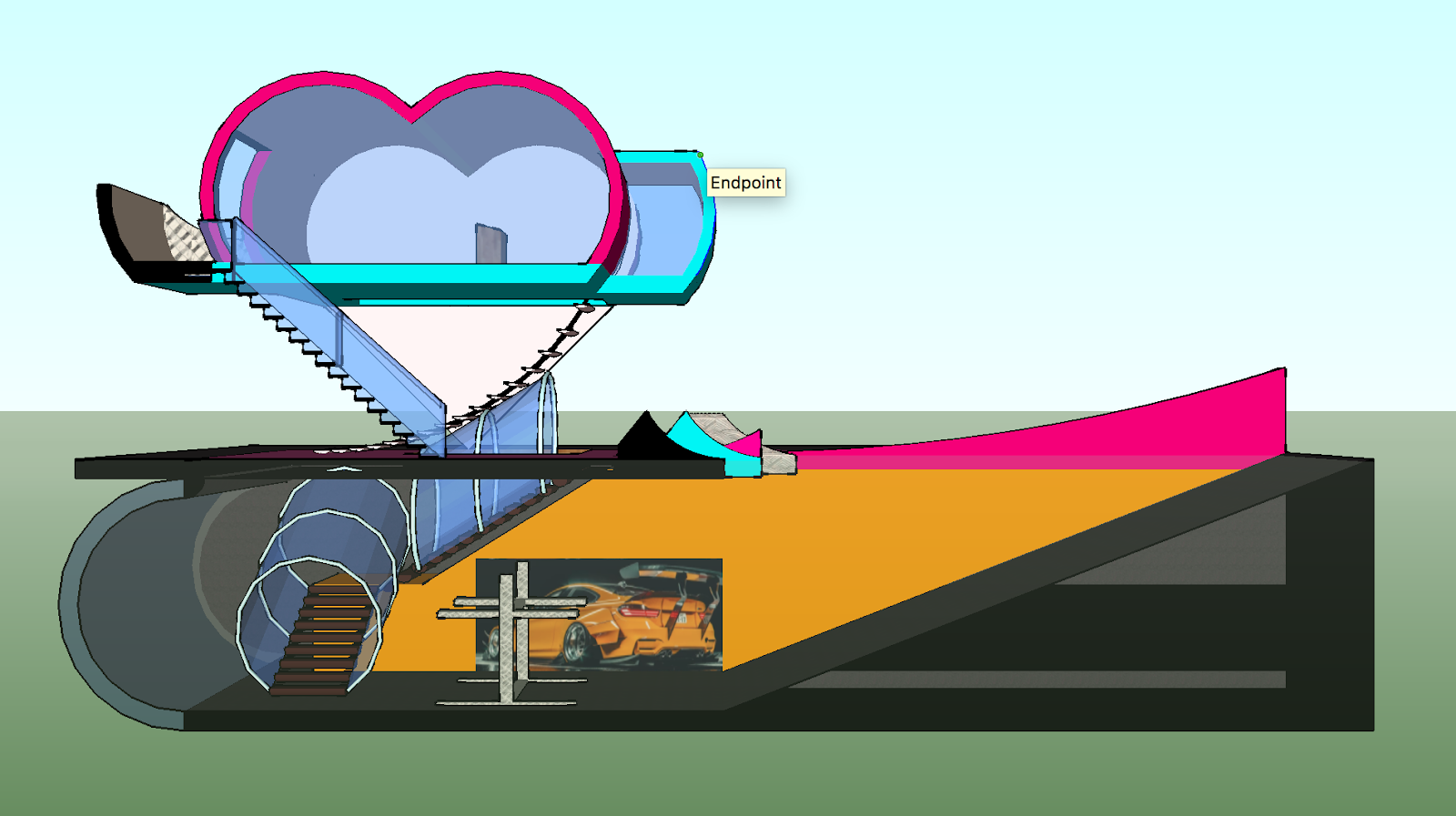

Section 1 - Cutting from front


Section 2 - Cutting from left


Section 3 - Cutting from right


3D Warehouse link: https://3dwarehouse.sketchup.com/model/4083749d-6fa9-46a0-99cf-5f56a319c5ef/Stairs-Tunnel-Heart
